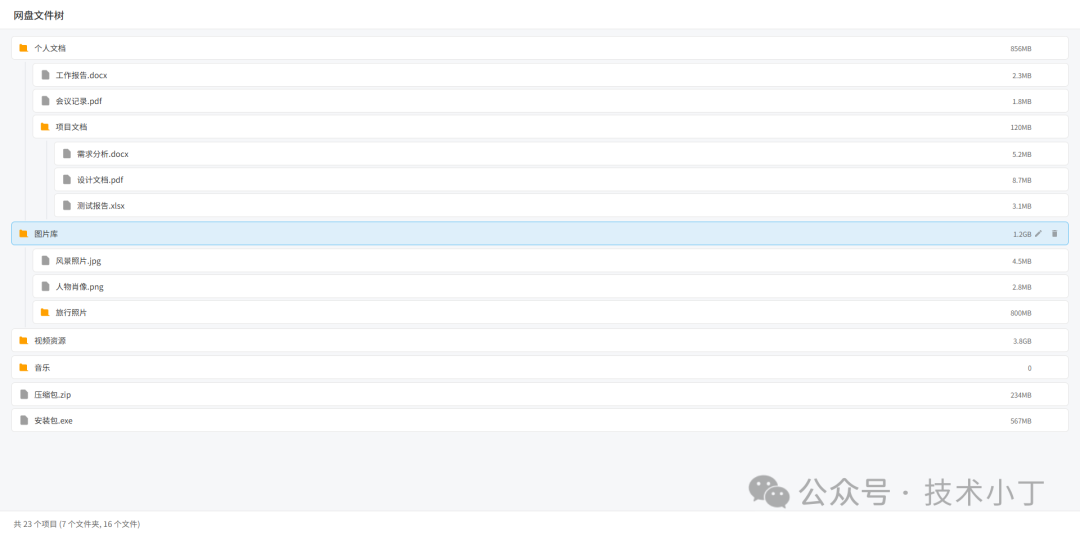

文件树是现代文件管理系统中的核心组件，通过树形结构展示文件和文件夹的层级关系，让用户能够直观地浏览和管理文件。这种界面设计提供了清晰的层次结构，支持文件的展开收起、选中、重命名、删除等操作，极大提升了用户体验和操作效率。本文将介绍如何使用 HTML、CSS 和 JavaScript 实现文件树。效果演示
文件树具有丰富的交互功能。用户可以通过单击选中某个文件或文件夹，被选中的节点会高亮显示。双击文件夹可以展开或收起其子内容，双击文件会触发打开操作。每个节点右侧都有操作按钮，点击重命名按钮可以修改文件名，删除按钮可以移除节点。鼠标悬停在节点上时，会显示操作按钮并改变背景颜色。界面还提供了统计信息，显示当前文件树中项目的总数。
页面结构
文件树区域
<div class="file-tree" id="fileTree"> <div class="loading">正在加载文件树...</div></div>
统计信息区域
<div class="stats"> <span id="itemCount">共 0 个项目</span></div>
核心功能实现
数据结构设计
文件树的数据结构使用嵌套对象表示，每个节点包含名称、类型、大小和子节点等信息。const mockFileData = [ { name: "个人文档", type: "folder", size: "856MB", children: [ { name: "工作报告.docx", type: "file", size: "2.3MB" }, { name: "会议记录.pdf", type: "file", size: "1.8MB" }, ] },];
节点渲染机制
renderNode 方法负责将数据渲染为 DOM 元素，递归处理子节点。根据节点类型显示不同的图标，对文件夹处理展开收起状态。renderNode(node, level = 0) { if (!node) return '';
const isExpanded = this.expandedNodes.has(node.id); const isSelected = this.selectedNodes.has(node.id); const hasChildren = node.children && node.children.length > 0;
let html = ``;
if (hasChildren) { html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}">`; node.children.forEach(child => { html += this.renderNode(child, level + 1); }); html += '</div>'; } else if (node.type === 'folder') { html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}"><div class="folder-empty">空文件夹</div></div>` }
html += '</div>'; return html;}
交互事件处理
通过 handleNodeClick 和 handleNodeDblClick 方法处理用户的点击和双击事件，实现节点选中和展开收起功能。handleNodeClick(event, nodeId) { event.stopPropagation(); this.setSelection(nodeId);}
handleNodeDblClick(event, nodeId) { event.stopPropagation(); const node = this.nodeIdMap.get(nodeId); if (node && node.type === 'folder') { this.toggleNode(nodeId); } else { alert(`正在打开文件: ${node.name}`); }}
节点操作功能
renameNode 和 deleteNode 方法分别实现重命名和删除功能。重命名时将文本替换为输入框，支持 Enter 确认和 Escape 取消操作。renameNode(nodeId) { const node = this.nodeIdMap.get(nodeId); if (!node) return;
const treeItem = document.querySelector(`[data-id="${nodeId}"]`); if (!treeItem) return;
const originalName = node.name; const nameDiv = treeItem.querySelector('.node-name'); const input = document.createElement('input'); input.type = 'text'; input.className = 'rename-input'; input.value = originalName;
nameDiv.innerHTML = ''; nameDiv.appendChild(input); input.focus(); input.select(); input.addEventListener('mousedown', (e) => e.stopPropagation()); input.addEventListener('click', (e) => e.stopPropagation()); input.addEventListener('dblclick', (e) => e.stopPropagation());
const finishRename = (newName) => { if (newName && newName !== originalName) { const parent = this.findParentNode(nodeId); if (parent && parent.children.some(child => child.name === newName && child.id !== nodeId)) { alert('同名文件或文件夹已存在！'); input.value = originalName; nameDiv.textContent = originalName; return; }
node.name = newName; this.nodeIdMap.delete(nodeId); this.generateNodeIds([node], parent ? parent.id : null); } else { nameDiv.textContent = originalName; } this.render(); };
input.addEventListener('blur', () => finishRename(input.value)); input.addEventListener('keypress', (e) => { if (e.key === 'Enter') finishRename(input.value); else if (e.key === 'Escape') { nameDiv.textContent = originalName; this.render(); } });}
deleteNode(nodeId) { const node = this.nodeIdMap.get(nodeId); if (!node) return;
if (!confirm(`确定要删除"${node.name}"吗？`)) return;
const parent = this.findParentNode(nodeId); if (parent) { parent.children = parent.children.filter(child => child.id !== nodeId); } else { this.data = this.data.filter(item => item.id !== nodeId); }
this.removeNodeData(nodeId); this.render();}
扩展建议
添加拖拽功能实现文件移动
增加搜索和过滤功能
添加多选操作支持
支持键盘快捷键操作
完整代码
git地址：https://gitee.com/ironpro/hjdemo/blob/master/file-tree/index.html<!DOCTYPE html><html lang="zh-CN"><head> <meta charset="utf-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>文件树</title> <style> * { margin: 0; padding: 0; box-sizing: border-box; user-select: none; } html, body { height: 100%; } body { background: #f6f7f9; min-height: 100vh; color: #333; display: flex; flex-direction: column; } .container { max-width: 100%; flex: 1; display: flex; flex-direction: column; } header { height: 52px; background: #fff; border-bottom: 1px solid #e5e5e5; display: flex; align-items: center; padding: 0 24px; position: sticky; top: 0; z-index: 9; flex-shrink: 0; } header h1 { font-size: 18px; font-weight: 500; margin-right: auto; display: flex; align-items: center; gap: 8px; } .file-tree { padding: 10px 20px; flex: 1; overflow-y: auto; } .tree-item { margin: 2px 0; user-select: none; } .tree-node { display: flex; align-items: center; padding: 8px 14px; border-radius: 6px; cursor: pointer; transition: all 0.3s ease; border: 1px solid #e5e5e5; background: #fff; margin-bottom: 4px; } .tree-node:hover { background: #f0f7ff; border-color: #06a7ff; } .tree-node.selected { background: rgba(6, 167, 255, 0.1); } .node-icon { width: 20px; height: 20px; margin-right: 8px; display: flex; align-items: center; justify-content: center; font-size: 16px; transition: transform 0.3s ease; } .node-name { flex: 1; font-size: 14px; color: #333; } .node-size { font-size: 14px; color: #666; margin-left: 8px; } .node-actions { display: flex; gap: 5px; opacity: 0; transition: opacity 0.3s ease; } .tree-node:hover .node-actions { opacity: 1; } .action-btn { width: 24px; height: 24px; border: none; background: transparent; cursor: pointer; border-radius: 4px; display: flex; align-items: center; justify-content: center; font-size: 14px; color: #666; transition: all 0.3s ease; } .action-btn:hover { background: #dee2e6; color: #333; } .tree-children { margin-left: 24px; border-left: 2px solid #e9ecef; padding-left: 14px; max-height: 0; overflow: hidden; transition: max-height 0.3s ease; } .tree-children.expanded { max-height: 2000px; } .folder-empty { color: #999; font-style: italic; padding: 8px 14px; margin-left: 24px; } .stats { display: flex; justify-content: space-between; align-items: center; padding: 14px 24px; background: #fff; border-top: 1px solid #e5e5e5; font-size: 14px; color: #666; } .loading { text-align: center; padding: 20px; color: #666; } .loading::after { content: ''; display: inline-block; width: 20px; height: 20px; border: 2px solid #f3f3f3; border-top: 2px solid #06a7ff; border-radius: 50%; animation: spin 1s linear infinite; margin-left: 10px; } @keyframes spin { 0% { transform: rotate(0deg); } 100% { transform: rotate(360deg); } } .rename-input { width: 100%; padding: 5px; border-radius: 3px;border: 1px solid #06a7ff; font-size: 14px; user-select: auto; } .rename-input:focus { outline: none; } </style></head><body><div class="container"> <header><h1>文件树</h1></header> <div class="file-tree" id="fileTree"> <div class="loading">正在加载文件树...</div> </div> <div class="stats"> <span id="itemCount">共 0 个项目</span> </div></div><script> const iconMap = { folder: '<svg viewBox="0 0 24 24" width="20" height="20"><path fill="#FFA000" d="M10 4H4c-1.11 0-2 .89-2 2v12c0 1.11.89 2 2 2h16c1.11 0 2-.89-2-2V8c0-1.11-.89-2-2-2h-8l-2-2z"/></svg>', file: '<svg viewBox="0 0 24 24" width="20" height="20"><path fill="#9E9E9E" d="M14 2H6c-1.1 0-2 .9-2 2v16c0 1.1.9 2 2 2h12c1.1 0 2-.9 2-2V8l-6-6z"/></svg>' };
const mockFileData = [ { name: "个人文档", type: "folder", size: "856MB", children: [ { name: "工作报告.docx", type: "file", size: "2.3MB" }, { name: "会议记录.pdf", type: "file", size: "1.8MB" }, ] }, ];
class FileTreeManager { constructor() { this.data = mockFileData; this.expandedNodes = new Set(); this.selectedNodes = new Set(); this.nodeIdMap = new Map(); this.init(); }
init() { this.generateNodeIds(this.data); this.render(); this.updateStats(); }
generateNodeIds(nodes, parentId = null) { nodes.forEach(node => { const id = parentId ? `${parentId}-${node.name}` : node.name; this.nodeIdMap.set(id, node); node.id = id; if (node.children) this.generateNodeIds(node.children, id); }); }
render() { const container = document.getElementById('fileTree'); container.innerHTML = '';
let html = ''; this.data.forEach(rootNode => { html += this.renderNode(rootNode); }); container.innerHTML = html;
this.updateStats(); }
renderNode(node, level = 0) { if (!node) return '';
const isExpanded = this.expandedNodes.has(node.id); const isSelected = this.selectedNodes.has(node.id); const hasChildren = node.children && node.children.length > 0;
let html = `<div class="tree-item" data-name="${this.escapeHtml(node.name)}" data-type="${node.type}" data-id="${node.id}"> <div class="tree-node ${isSelected ? 'selected' : ''}" onclick="fileTreeManager.handleNodeClick(event, '${node.id}')" ondblclick="fileTreeManager.handleNodeDblClick(event, '${node.id}')"> <div class="node-icon ${isExpanded ? 'expanded' : ''}"> ${this.getIcon(node.type, node.name)} </div> <div class="node-name">${node.name}</div> <div class="node-size">${node.size || ''}</div> <div class="node-actions"> <button class="action-btn" title="重命名" onclick="fileTreeManager.renameNode('${node.id}'); event.stopPropagation();"> <svg viewBox="0 0 24 24" width="16" height="16"><path fill="#666" d="M3 17.25V21h3.75L17.81 9.94l-3.75-3.75L3 17.25zM20.71 7.04c.39-.39.39-1.02 0-1.41l-2.34-2.34c-.39-.39-1.02-.39-1.41 0l-1.83 1.83 3.75 3.75 1.83-1.83z"/></svg> </button> <button class="action-btn" title="删除" onclick="fileTreeManager.deleteNode('${node.id}'); event.stopPropagation();"> <svg viewBox="0 0 24 24" width="16" height="16"><path fill="#666" d="M6 19c0 1.1.9 2 2 2h8c1.1 0 2-.9 2-2V7H6v12zM19 4h-3.5l-1-1h-5l-1 1H5v2h14V4z"/></svg> </button> </div> </div>`;
if (hasChildren) { html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}">`; node.children.forEach(child => { html += this.renderNode(child, level + 1); }); html += '</div>'; } else if (node.type === 'folder') { html += `<div class="tree-children ${isExpanded ? 'expanded' : ''}"><div class="folder-empty">空文件夹</div></div>` }
html += '</div>'; return html; }
escapeHtml(text) { const div = document.createElement('div'); div.textContent = text; return div.innerHTML; }
getIcon(type, filename) { if (type === 'folder') return iconMap.folder; return iconMap.file; }
handleNodeClick(event, nodeId) { event.stopPropagation(); this.setSelection(nodeId); }
handleNodeDblClick(event, nodeId) { event.stopPropagation(); const node = this.nodeIdMap.get(nodeId); if (node && node.type === 'folder') { this.toggleNode(nodeId); } else { alert(`正在打开文件: ${node.name}`); } }
toggleNode(nodeId) { if (this.expandedNodes.has(nodeId)) { this.expandedNodes.delete(nodeId); } else { this.expandedNodes.add(nodeId); } this.render(); }
setSelection(nodeId) { this.selectedNodes.clear(); this.selectedNodes.add(nodeId); this.render(); }
renameNode(nodeId) { const node = this.nodeIdMap.get(nodeId); if (!node) return;
const treeItem = document.querySelector(`[data-id="${nodeId}"]`); if (!treeItem) return;
const originalName = node.name; const nameDiv = treeItem.querySelector('.node-name'); const input = document.createElement('input'); input.type = 'text'; input.className = 'rename-input'; input.value = originalName;
nameDiv.innerHTML = ''; nameDiv.appendChild(input); input.focus(); input.select(); input.addEventListener('mousedown', (e) => e.stopPropagation()); input.addEventListener('click', (e) => e.stopPropagation()); input.addEventListener('dblclick', (e) => e.stopPropagation());
const finishRename = (newName) => { if (newName && newName !== originalName) { const parent = this.findParentNode(nodeId); if (parent && parent.children.some(child => child.name === newName && child.id !== nodeId)) { alert('同名文件或文件夹已存在！'); input.value = originalName; nameDiv.textContent = originalName; return; } node.name = newName; this.nodeIdMap.delete(nodeId); this.generateNodeIds([node], parent ? parent.id : null); } else { nameDiv.textContent = originalName; } this.render(); }; input.addEventListener('blur', () => finishRename(input.value)); input.addEventListener('keypress', (e) => { if (e.key === 'Enter') finishRename(input.value); else if (e.key === 'Escape') { nameDiv.textContent = originalName; this.render(); } }); }
deleteNode(nodeId) { const node = this.nodeIdMap.get(nodeId); if (!node) return; if (!confirm(`确定要删除"${node.name}"吗？`)) return; const parent = this.findParentNode(nodeId); if (parent) { parent.children = parent.children.filter(child => child.id !== nodeId); } else { this.data = this.data.filter(item => item.id !== nodeId); } this.removeNodeData(nodeId); this.render(); }
removeNodeData(nodeId) { const node = this.nodeIdMap.get(nodeId); if (node) { this.nodeIdMap.delete(nodeId); if (node.children) { node.children.forEach(child => this.removeNodeData(child.id)); } }
this.expandedNodes.delete(nodeId); this.selectedNodes.delete(nodeId); }
findParentNode(nodeId) { const findInTree = (nodes, id) => { for (const node of nodes) { if (node.children) { if (node.children.some(child => child.id === id)) return node; const found = findInTree(node.children, id); if (found) return found; } } return null; }; return findInTree(this.data, nodeId); }
getAllNodeIds(nodes, ids = []) { nodes.forEach(node => { ids.push(node.id); if (node.children) this.getAllNodeIds(node.children, ids); }); return ids; }
updateStats() { const allNodes = this.getAllNodeIds(this.data); const folderCount = this.getAllFolderIds(this.data).length; const fileCount = allNodes.length - folderCount; document.getElementById('itemCount').textContent = `共 ${allNodes.length} 个项目 (${folderCount} 个文件夹, ${fileCount} 个文件)`; }
getAllFolderIds(nodes, ids = []) { nodes.forEach(node => { if (node.type === 'folder') { ids.push(node.id); if (node.children) this.getAllFolderIds(node.children, ids); } }); return ids; } } const fileTreeManager = new FileTreeManager();</script></body></html>
阅读原文：https://mp.weixin.qq.com/s/abgfPvLtOAFeJRyMAY75cg
该文章在 2026/2/9 11:21:38 编辑过
