【C#】免费开源 Word 模板引擎 MiniWord .NET

当前位置：点晴教程→知识管理交流 →『技术文档交流』

admin

2024年7月16日 18:24 本文热度 885

介绍

MiniWord .NET Word模板引擎，藉由Word模板和数据简单、快速生成文件。

Getting Started

安装

nuget link : https://www.nuget.org/packages/MiniWord

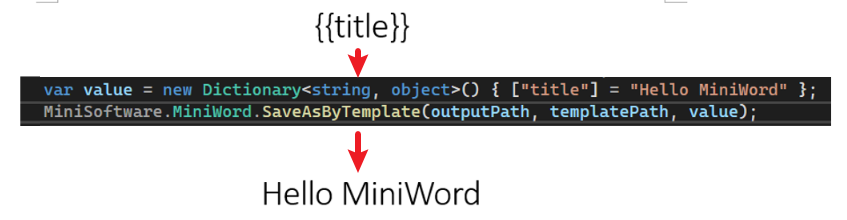

快速入门

模板遵循“所见即所得”的设计，模板和标签的样式会被完全保留

var value = new Dictionary<string, object>(){["title"] = "Hello MiniWord"};
MiniSoftware.MiniWord.SaveAsByTemplate(outputPath, templatePath, value);

输入、输出

输入系统支持模版路径或是Byte[]
输出支持文件路径、Byte[]、Stream

SaveAsByTemplate(string path, string templatePath, Dictionary<string, object> value)
SaveAsByTemplate(string path, byte[] templateBytes, Dictionary<string, object> value)
SaveAsByTemplate(this Stream stream, string templatePath, Dictionary<string, object> value)
SaveAsByTemplate(this Stream stream, byte[] templateBytes, Dictionary<string, object> value)

var value = new Dictionary<string, object>()
{
    ["Name"] = "Jack",
    ["Department"] = "IT Department",
    ["Purpose"] = "Shanghai site needs a new system to control HR system.",
    ["StartDate"] = DateTime.Parse("2022-09-07 08:30:00"),
    ["EndDate"] = DateTime.Parse("2022-09-15 15:30:00"),
    ["Approved"] = true,
    ["Total_Amount"] = 123456,
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

模版

导出


标签值为 MiniWordPicture 类别

代码例子

var value = new Dictionary<string, object>()
{
    ["Logo"] = new MiniWordPicture() { Path= PathHelper.GetFile("DemoLogo.png"), Width= 180, Height= 180 }
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

模版

导出

列表

标签值为 string[] 或是 IList<string>类别

代码例子

var value = new Dictionary<string, object>(){
    ["managers"] = new[] { "Jack","Alan"},
    ["employees"] = new[] { "Mike","Henry"},};MiniWord.SaveAsByTemplate(path, templatePath, value);

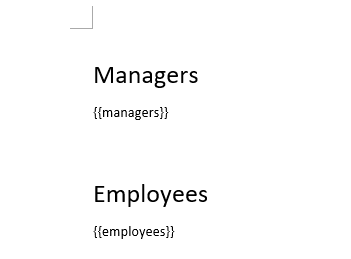

模版

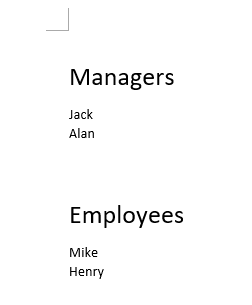

导出

表格

标签值为 IEmerable<Dictionary<string,object>>类别

代码例子

var value = new Dictionary<string, object>()
{
    ["TripHs"] = new List<Dictionary<string, object>>
    {
        new Dictionary<string, object>
        {
            { "sDate",DateTime.Parse("2022-09-08 08:30:00")},
            { "eDate",DateTime.Parse("2022-09-08 15:00:00")},
            { "How","Discussion requirement part1"},
            { "Photo",new MiniWordPicture() { Path = PathHelper.GetFile("DemoExpenseMeeting02.png"), Width = 160, Height = 90 }},
        },
        new Dictionary<string, object>
        {
            { "sDate",DateTime.Parse("2022-09-09 08:30:00")},
            { "eDate",DateTime.Parse("2022-09-09 17:00:00")},
            { "How","Discussion requirement part2 and development"},
            { "Photo",new MiniWordPicture() { Path = PathHelper.GetFile("DemoExpenseMeeting01.png"), Width = 160, Height = 90 }},
        },
    }
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

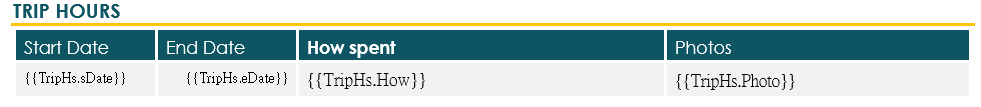

模版

导出

二级列表

Tag 是 IEnumerable<MiniWordForeach> 类别. 使用方式{{foreach 和 endforeach}}.

Example

var value = new Dictionary<string, object>()
{
    ["TripHs"] = new List<Dictionary<string, object>>
    {
        new Dictionary<string, object>
        {
            { "sDate", DateTime.Parse("2022-09-08 08:30:00") },
            { "eDate", DateTime.Parse("2022-09-08 15:00:00") },
            { "How", "Discussion requirement part1" },
            {
                "Details", new List<MiniWordForeach>()
                {
                    new MiniWordForeach()
                    {
                        Value = new Dictionary<string, object>()
                        {
                            {"Text", "Air"},
                            {"Value", "Airplane"}
                        },
                        Separator = " | "
                    },
                    new MiniWordForeach()
                    {
                        Value = new Dictionary<string, object>()
                        {
                            {"Text", "Parking"},
                            {"Value", "Car"}
                        },
                        Separator = " / "
                    }
                }
            }
        }
    }
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

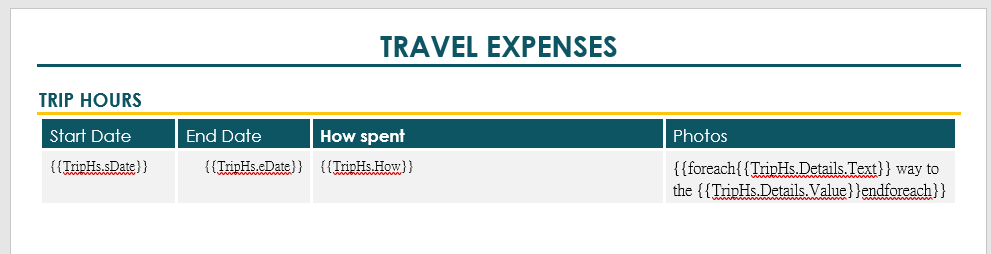

Template

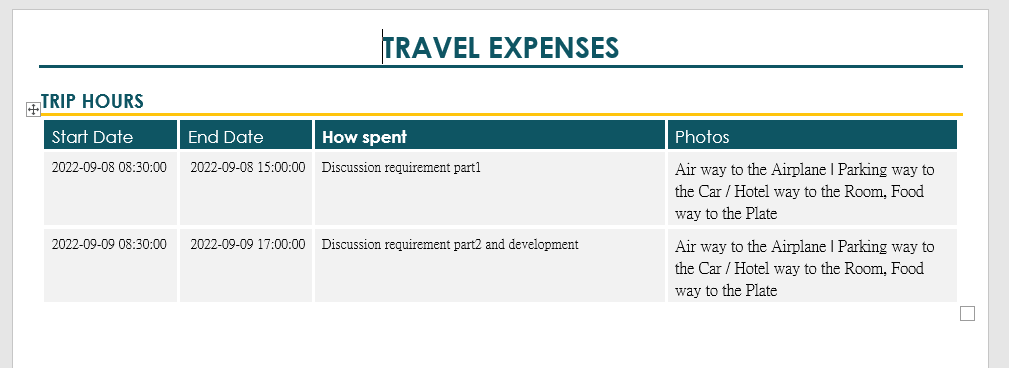

Result

条件判断

@if 和 @endif tags .

Example

var value = new Dictionary<string, object>()
{
    ["Name"] = new List<MiniWordHyperLink>(){
        new MiniWordHyperLink(){
            Url = "https://google.com",
            Text = "測試連結22!!"
        },
        new MiniWordHyperLink(){
            Url = "https://google1.com",
            Text = "測試連結11!!"
        }
    },
    ["Company_Name"] = "MiniSofteware",
    ["CreateDate"] = new DateTime(2021, 01, 01),
    ["VIP"] = true,
    ["Points"] = 123,
    ["APP"] = "Demo APP",
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

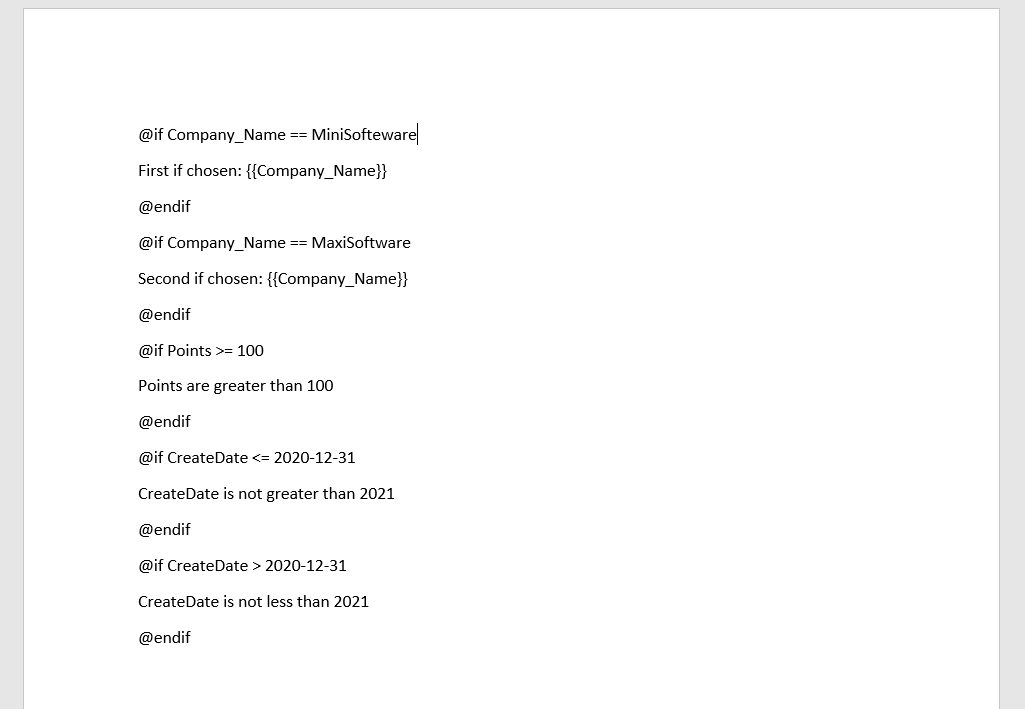

Template

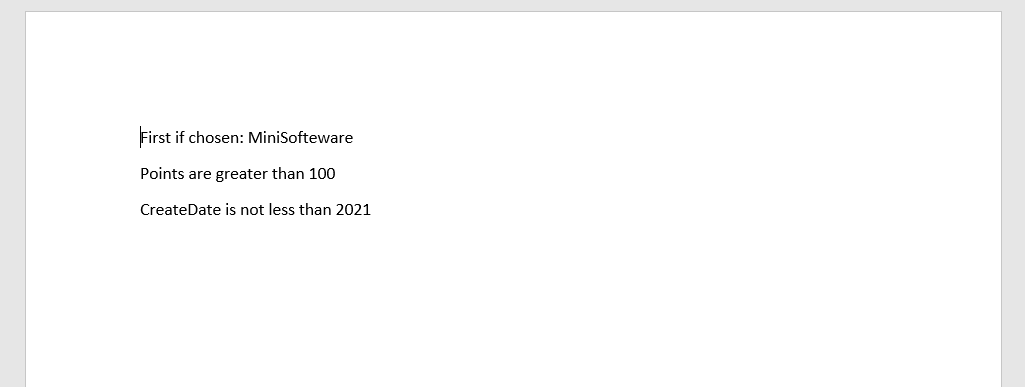

Result

多彩字体

代码例子

var value = new
{
    Company_Name = new MiniWordColorText { Text = "MiniSofteware", FontColor = "#eb70AB", },
    Name = new[] {
        new MiniWordColorText { Text = "Ja", HighlightColor = "#eb70AB" },
        new MiniWordColorText { Text = "ck", HighlightColor = "#a56abe" }
    },
    CreateDate = new MiniWordColorText
    {
        Text = new DateTime(2021, 01, 01).ToString(),
        HighlightColor = "#eb70AB",
        FontColor = "#ffffff",
    },
    VIP = true,
    Points = 123,
    APP = "Demo APP",
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

其他

POCO or dynamic 参数

v0.5.0 支持 POCO 或 dynamic parameter

var value = new { title = "Hello MiniWord" };
MiniWord.SaveAsByTemplate(outputPath, templatePath, value);

字体FontColor和HighlightColor

var value = new
{
    Company_Name = new MiniWordColorText { Text = "MiniSofteware", FontColor = "#eb70AB" },
    Name = new MiniWordColorText { Text = "Jack", HighlightColor = "#eb70AB" },
    CreateDate = new MiniWordColorText { Text = new DateTime(2021, 01, 01).ToString(), HighlightColor = "#eb70AB", FontColor = "#ffffff" },
    VIP = true,
    Points = 123,
    APP = "Demo APP",
};

HyperLink

我们可以尝试使用 MiniWodrHyperLink 类，用模板测试替换为超链接。

MiniWordHyperLink 提供了两个主要参数。

Url： HyperLink URI 目标路径
文字：超链接文字

var value = new
{
    ["Name"] = new MiniWordHyperLink(){
        Url = "https://google.com",
        Text = "測試連結!!"
    },
    ["Company_Name"] = "MiniSofteware",
    ["CreateDate"] = new DateTime(2021, 01, 01),
    ["VIP"] = true,
    ["Points"] = 123,
    ["APP"] = "Demo APP",
};
MiniWord.SaveAsByTemplate(path, templatePath, value);

例子

ASP.NET Core 3.1 API Export

using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using System;
using System.Collections.Generic;
using System.IO;
using System.Net;
using MiniSoftware;


public class Program
{
    public static void Main(string[] args) => CreateHostBuilder(args).Build().Run();


    public static IHostBuilder CreateHostBuilder(string[] args) => Host.CreateDefaultBuilder(args).ConfigureWebHostDefaults(webBuilder => webBuilder.UseStartup<Startup>());
}


public class Startup
{
    public void ConfigureServices(IServiceCollection services) => services.AddMvc();
    public void Configure(IApplicationBuilder app, IWebHostEnvironment env)
    {
        app.UseStaticFiles();
        app.UseRouting();
        app.UseEndpoints(endpoints =>
        {
            endpoints.MapControllerRoute(
                name: "default",
                pattern: "{controller=api}/{action=Index}/{id?}");
        });
    }
}


public class ApiController : Controller
{
    public IActionResult Index()
    {
        return new ContentResult
        {
            ContentType = "text/html",
            StatusCode = (int)HttpStatusCode.OK,
            Content = @"<html><body>
<a href='api/DownloadWordFromTemplatePath'>DownloadWordFromTemplatePath</a><br>
<a href='api/DownloadWordFromTemplateBytes'>DownloadWordFromTemplateBytes</a><br>
</body></html>"
        };
    }


    static Dictionary<string, object> defaultValue = new Dictionary<string, object>()
    {
        ["title"] = "FooCompany",
        ["managers"] = new List<Dictionary<string, object>> {
            new Dictionary<string, object>{{"name","Jack"},{ "department", "HR" } },
            new Dictionary<string, object> {{ "name", "Loan"},{ "department", "IT" } }
        },
        ["employees"] = new List<Dictionary<string, object>> {
            new Dictionary<string, object>{{ "name", "Wade" },{ "department", "HR" } },
            new Dictionary<string, object> {{ "name", "Felix" },{ "department", "HR" } },
            new Dictionary<string, object>{{ "name", "Eric" },{ "department", "IT" } },
            new Dictionary<string, object> {{ "name", "Keaton" },{ "department", "IT" } }
        }
    };


    public IActionResult DownloadWordFromTemplatePath()
    {
        string templatePath = "TestTemplateComplex.docx";


        Dictionary<string, object> value = defaultValue;


        MemoryStream memoryStream = new MemoryStream();
        MiniWord.SaveAsByTemplate(memoryStream, templatePath, value);
        memoryStream.Seek(0, SeekOrigin.Begin);
        return new FileStreamResult(memoryStream, "application/vnd.openxmlformats-officedocument.wordprocessingml.document")
        {
            FileDownloadName = "demo.docx"
        };
    }


    private static Dictionary<string, Byte[]> TemplateBytesCache = new Dictionary<string, byte[]>();


    static ApiController()
    {
        string templatePath = "TestTemplateComplex.docx";
        byte[] bytes = System.IO.File.ReadAllBytes(templatePath);
        TemplateBytesCache.Add(templatePath, bytes);
    }


    public IActionResult DownloadWordFromTemplateBytes()
    {
        byte[] bytes = TemplateBytesCache["TestTemplateComplex.docx"];


        Dictionary<string, object> value = defaultValue;


        MemoryStream memoryStream = new MemoryStream();
        MiniWord.SaveAsByTemplate(memoryStream, bytes, value);
        memoryStream.Seek(0, SeekOrigin.Begin);
        return new FileStreamResult(memoryStream, "application/vnd.openxmlformats-officedocument.wordprocessingml.document")
        {
            FileDownloadName = "demo.docx"
        };
    }
}

该文章在 2024/7/16 18:38:03 编辑过
