C#一键获取并显示/隐藏第三方程序系统任务栏右下角托盘图标

admin

2024年3月19日 18:6 本文热度 597

本程序所实现功能：
   1.显示/隐藏Windows系统托盘图标
   2.显示/隐藏QQ聊天窗体及托盘图标
   3.显示/隐藏MSN聊天窗体及托盘图标
   4.显示/隐藏当前打开的窗体

一键隐藏QQ/MSN，显示/隐藏系统托盘图标技术难度较大，所以作为主要介绍对象。

显示隐藏系统括盘图标

我们先来分析QQ/MSN窗体特性：

打开VS->工具->Spy++（附件：spy++.zip）->Spy\Windows，看下图：

Spy++QQ窗体特性截图：

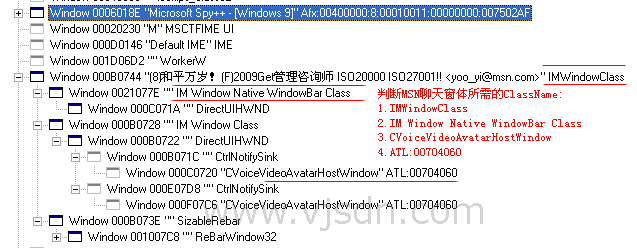

Spy++MSN窗体特性截图:

好了，知道QQ及MSN窗体信息后通过一堆WindowsAPI来枚举所有窗体。直到找出符合上面条件的窗体。

Win2API.cs，WinAPI函数定义类，函数说明这里不写了，如有不懂的自己上MSDN中文网搜搜。

using System;
using System.Collections.Generic;
using System.Text;
using System.Runtime.InteropServices;

/********************************************************************************
* 资料收集:Jonny Sun ,www.csframework.com
* ******************************************************************************/

namespace HideIcon
{
   /// <summary>
   /// 操作Windows窗体,系统托盘所用的API函数
   /// </summary>
   public class Win32API
   {
      public const int WM_USER = 0x400;
      public const int WM_CLOSE = 0x10;
      public const int WM_GETTEXT = 0x000D;
      public const int WM_SETTEXT = 0x000C;

      public const int STANDARD_RIGHTS_REQUIRED = 0xF0000;
      public const int SYNCHRONIZE = 0x100000;
      public const int PROCESS_ALL_ACCESS = STANDARD_RIGHTS_REQUIRED | SYNCHRONIZE | 0xFFF;
      public const int PROCESS_TERMINATE = 0x1;

      public const int PROCESS_VM_OPERATION = 0x8;
      public const int PROCESS_VM_READ = 0x10;
      public const int PROCESS_VM_WRITE = 0x20;

      public const int MEM_RESERVE = 0x2000;
      public const int MEM_COMMIT = 0x1000;
      public const int MEM_RELEASE = 0x8000;

      public const int PAGE_READWRITE = 0x4;

      public const int TB_BUTTONCOUNT = (WM_USER + 24);
      public const int TB_HIDEBUTTON = (WM_USER + 4);
      public const int TB_GETBUTTON = (WM_USER + 23);
      public const int TB_GETBUTTONTEXT = WM_USER + 75;
      public const int TB_GETBITMAP = (WM_USER + 44);
      public const int TB_DELETEBUTTON = (WM_USER + 22);
      public const int TB_ADDBUTTONS = (WM_USER + 20);
      public const int TB_INSERTBUTTON = (WM_USER + 21);
      public const int TB_ISBUTTONHIDDEN = (WM_USER + 12);
      public const int ILD_NORMAL = 0x0;
      public const int TPM_NONOTIFY = 0x80;

      public const int WS_VISIBLE = 268435456;//窗体可见
      public const int WS_MINIMIZEBOX = 131072;//有最小化按钮
      public const int WS_MAXIMIZEBOX = 65536;//有最大化按钮
      public const int WS_BORDER = 8388608;//窗体有边框
      public const int GWL_STYLE = (-16);//窗体样式
      public const int GW_HWNDFIRST = 0;
      public const int GW_HWNDNEXT = 2;
      public const int SW_HIDE = 0;
      public const int SW_SHOW = 5;

      [DllImport("User32.Dll")]
      public static extern void GetClassName(IntPtr hwnd, StringBuilder s, int nMaxCount);

      [DllImport("user32.dll", EntryPoint = "SetForegroundWindow", SetLastError = true)]
      public static extern void SetForegroundWindow(IntPtr hwnd);

      [DllImport("user32.dll", EntryPoint = "GetDlgItem", SetLastError = true)]
      public static extern IntPtr GetDlgItem(int nID, IntPtr phWnd);

      [DllImport("user32.dll", CharSet = CharSet.Auto)]
      public static extern int RegisterWindowMessage(string msg);

      [DllImport("kernel32", EntryPoint = "OpenProcess")]
      public static extern IntPtr OpenProcess(int dwDesiredAccess, IntPtr bInheritHandle, IntPtr dwProcessId);

      [DllImport("kernel32", EntryPoint = "CloseHandle")]
      public static extern int CloseHandle(IntPtr hObject);

      [DllImport("user32", EntryPoint = "GetWindowThreadProcessId")]
      public static extern IntPtr GetWindowThreadProcessId(IntPtr hwnd, ref IntPtr lpdwProcessId);

      [DllImport("user32.dll")]
      public static extern bool PostMessage(IntPtr hWnd, uint Msg, IntPtr wParam, IntPtr lParam);

      [DllImport("user32", EntryPoint = "SendMessage")]
      public static extern int SendMessage(IntPtr hwnd, int wMsg, int wParam, int lParam);

      [DllImport("user32", EntryPoint = "SendMessage")]
      public static extern int SendMessage(IntPtr hwnd, int wMsg, int wParam, IntPtr lParam);

      [DllImport("kernel32", EntryPoint = "ReadProcessMemory")]
      public static extern int ReadProcessMemory(IntPtr hProcess, IntPtr lpBaseAddress, ref IntPtr lpBuffer, int nSize, int lpNumberOfBytesWritten);

      [DllImport("kernel32.dll", EntryPoint = "ReadProcessMemory")]
      public static extern bool ReadProcessMemoryEx(IntPtr hProcess, IntPtr lpBaseAddress, IntPtr lpBuffer, int nSize, ref uint vNumberOfBytesRead);

      [DllImport("kernel32", EntryPoint = "ReadProcessMemory")]
      public static extern int ReadProcessMemory(IntPtr hProcess, IntPtr lpBaseAddress, byte[] lpBuffer, int nSize, int lpNumberOfBytesWritten);

      [DllImport("kernel32", EntryPoint = "WriteProcessMemory")]
      public static extern int WriteProcessMemory(IntPtr hProcess, ref int lpBaseAddress, ref int lpBuffer, int nSize, ref int lpNumberOfBytesWritten);

      [DllImport("kernel32", EntryPoint = "VirtualAllocEx")]
      public static extern IntPtr VirtualAllocEx(IntPtr hProcess, int lpAddress, int dwSize, int flAllocationType, int flProtect);

      [DllImport("kernel32", EntryPoint = "VirtualFreeEx")]
      public static extern int VirtualFreeEx(IntPtr hProcess, IntPtr lpAddress, int dwSize, int dwFreeType);

      [DllImport("User32.dll")]
      public extern static int GetWindow(int hWnd, int wCmd);

      [DllImport("User32.dll")]
      public extern static int GetWindowLongA(int hWnd, int wIndx);

      [DllImport("user32.dll")]
      public static extern bool GetWindowText(int hWnd, StringBuilder title, int maxBufSize);

      [DllImport("user32.dll", CharSet = CharSet.Auto)]
      public extern static int GetWindowTextLength(IntPtr hWnd);

      [DllImport("User32.dll", EntryPoint = "FindWindow")]
      public static extern IntPtr FindWindow(string lpClassName, string lpWindowName);

      [DllImport("user32.dll", EntryPoint = "FindWindowEx", SetLastError = true)]
      public static extern IntPtr FindWindowEx(IntPtr hwndParent, IntPtr hwndChildAfter, string lpszClass, string lpszWindow);

      [DllImport("user32.dll", EntryPoint = "ShowWindow", SetLastError = true)]
      public static extern bool ShowWindow(IntPtr hWnd, int nCmdShow);

      [DllImport("user32.dll", EntryPoint = "SendMessageA")]
      public static extern int SendMessage(IntPtr hwnd, int wMsg, IntPtr wParam, IntPtr lParam);

   }
}

WindowInfo.cs，窗体对象实体类，很多地方要用到的。

using System;
using System.Collections.Generic;
using System.Text;

namespace HideIcon
{
   //窗体信息
   public class WindowInfo
   {
      public WindowInfo(string title, IntPtr handle)
      {
         this._title = title;
         this._handle = handle;
      }

      private string _title;
      private IntPtr _handle;

      public string Title
      {
         get { return _title; }
         set { _title = value; }
      }

      public IntPtr Handle
      {
         get { return _handle; }
         set { _handle = value; }
      }

      public override string ToString()
      {
         return _handle.ToString() + ":" + _title;
      }
   }
}

WindowHide.cs，显示/隐藏Windows系统托盘图标及枚举Window窗体业务类。

using System.Runtime.InteropServices;
using System.Text;
using System;
using System.Collections.Generic;
using System.Collections;
/******************************************************************************************
* 源代码说明:
* 1.显示/隐藏Windows托盘图标
* 2.显示/隐藏QQ聊天窗体及托盘图标
* 3.显示/隐藏MSN聊天窗体及托盘图标
* 4.显示/隐藏当前打开的窗体
*
* ----------------------------------------------------------------------------------------
* 程序:www.csframework.com, 如转载请注明出处!
*****************************************************************************************/
namespace HideIcon
{
   public class WindowHide
   {
      //获取托盘指针
      private static IntPtr TrayToolbarWindow32()
      {
         IntPtr h = IntPtr.Zero;
         IntPtr hTemp = IntPtr.Zero;

         h = Win32API.FindWindow("Shell_TrayWnd", null); //托盘容器
         h = Win32API.FindWindowEx(h, IntPtr.Zero, "TrayNotifyWnd", null);//找到托盘
         h = Win32API.FindWindowEx(h, IntPtr.Zero, "SysPager", null);

         hTemp = Win32API.FindWindowEx(h, IntPtr.Zero, "ToolbarWindow32", null);

         return hTemp;
      }

      //获取托盘图标列表
      public static List<WindowInfo> GetIconList()
      {
         List<WindowInfo> iconList = new List<WindowInfo>();

         IntPtr pid = IntPtr.Zero;
         IntPtr ipHandle = IntPtr.Zero; //图标句柄
         IntPtr lTextAdr = IntPtr.Zero; //文本内存地址

         IntPtr ipTray = TrayToolbarWindow32();

         Win32API.GetWindowThreadProcessId(ipTray, ref pid);
         if (pid.Equals(0)) return iconList;

         IntPtr hProcess = Win32API.OpenProcess(Win32API.PROCESS_ALL_ACCESS | Win32API.PROCESS_VM_OPERATION | Win32API.PROCESS_VM_READ | Win32API.PROCESS_VM_WRITE, IntPtr.Zero, pid);
         IntPtr lAddress = Win32API.VirtualAllocEx(hProcess, 0, 4096, Win32API.MEM_COMMIT, Win32API.PAGE_READWRITE);

         //得到图标个数
         int lButton = Win32API.SendMessage(ipTray, Win32API.TB_BUTTONCOUNT, 0, 0);

         for (int i = 0; i < lButton; i++)
         {
            Win32API.SendMessage(ipTray, Win32API.TB_GETBUTTON, i, lAddress);

            //读文本地址
            Win32API.ReadProcessMemory(hProcess, (IntPtr)(lAddress.ToInt32() + 16), ref lTextAdr, 4, 0);

            if (!lTextAdr.Equals(-1))
            {
               byte[] buff = new byte[1024];

               Win32API.ReadProcessMemory(hProcess, lTextAdr, buff, 1024, 0);//读文本
               string title = System.Text.ASCIIEncoding.Unicode.GetString(buff);

               // 从字符0处截断
               int nullindex = title.IndexOf("\0");
               if (nullindex > 0)
               {
                  title = title.Substring(0, nullindex);
               }

               IntPtr ipHandleAdr = IntPtr.Zero;

               //读句柄地址
               Win32API.ReadProcessMemory(hProcess, (IntPtr)(lAddress.ToInt32() + 12), ref ipHandleAdr, 4, 0);
               Win32API.ReadProcessMemory(hProcess, ipHandleAdr, ref ipHandle, 4, 0);

               if (title.Replace("\0", "") == "") continue;//不加载空项
               iconList.Add(new WindowInfo(title, ipHandle));
            }
         }
         Win32API.VirtualFreeEx(hProcess, lAddress, 4096, Win32API.MEM_RELEASE);
         Win32API.CloseHandle(hProcess);

         return iconList;
      }

      //获取QQ窗体列表
      public static List<WindowInfo> GetQQWindowList(int Handle)
      {
         const string CLASS_PARENT = "TXGuiFoundation";
         const string CLASS_CHILD = "ATL:006CC4D0";

         List<WindowInfo> list = new List<WindowInfo>();

         StringBuilder title = new StringBuilder(256);
         StringBuilder className = new StringBuilder(256);

         int h = Handle;// (int)Win32API.FindWindow(CLASS_PARENT, "");
         while (h != 0)
         {
            //QQ聊天窗体的子窗体
            IntPtr p = Win32API.FindWindowEx(new IntPtr(h), IntPtr.Zero, CLASS_CHILD, "");

            if (p != IntPtr.Zero)
            {
               Win32API.GetWindowText(h, title, title.Capacity);//得到窗口的标题

               if (title.ToString().Trim() != "")
               Win32API.GetClassName(new IntPtr(h), className, className.Capacity);

               if (className.ToString().Trim() != "" && className.ToString() == CLASS_PARENT)
               {
                  WindowInfo wi = new WindowInfo(title.ToString(), new IntPtr(h));
                  list.Add(wi);
               }
            }

            h = Win32API.GetWindow(h, Win32API.GW_HWNDNEXT);
         }

         return list;
      }

      //获取QQ窗体列表
      public static List<WindowInfo> GetMSNWindowList(int Handle)
      {
         const string CLASS_PARENT = "IMWindowClass";
         const string CLASS_CHILD = "IM Window Native WindowBar Class";

         List<WindowInfo> list = new List<WindowInfo>();

         StringBuilder title = new StringBuilder(256);
         StringBuilder className = new StringBuilder(256);

         int h = Handle;// (int)Win32API.FindWindow(CLASS_PARENT, "");
         while (h != 0)
         {
            //QQ聊天窗体的子窗体
            IntPtr p = Win32API.FindWindowEx(new IntPtr(h), IntPtr.Zero, CLASS_CHILD, "");

            if (p != IntPtr.Zero)
            {
               Win32API.GetWindowText(h, title, title.Capacity);//得到窗口的标题

               if (title.ToString().Trim() != "")
               Win32API.GetClassName(new IntPtr(h), className, className.Capacity);

               if (className.ToString().Trim() != "" && className.ToString() == CLASS_PARENT)
               {
                  WindowInfo wi = new WindowInfo(title.ToString(), new IntPtr(h));
                  list.Add(wi);
               }
            }

            h = Win32API.GetWindow(h, Win32API.GW_HWNDNEXT);
         }

         return list;
      }

      //获取打开的窗体列表
      public static List<WindowInfo> GetHandleList(int Handle)
      {
         List<WindowInfo> fromInfo = new List<WindowInfo>();

         int handle = Win32API.GetWindow(Handle, Win32API.GW_HWNDFIRST);
         while (handle > 0)
         {
            int IsTask = Win32API.WS_VISIBLE | Win32API.WS_BORDER | Win32API.WS_MAXIMIZEBOX;//窗体可见、有边框、有最大化按钮
            int lngStyle = Win32API.GetWindowLongA(handle, Win32API.GWL_STYLE);
            bool TaskWindow = ((lngStyle & IsTask) == IsTask);
            if (TaskWindow)
            {
               int length = Win32API.GetWindowTextLength(new IntPtr(handle));
               StringBuilder stringBuilder = new StringBuilder(2 * length + 1);
               Win32API.GetWindowText(handle, stringBuilder, stringBuilder.Capacity);
               string strTitle = stringBuilder.ToString();
               if (!string.IsNullOrEmpty(strTitle))
               {
                  fromInfo.Add(new WindowInfo(strTitle, (IntPtr)handle));
               }
               else
               {
                  fromInfo.Add(new WindowInfo("无标题", (IntPtr)handle));
               }
            }
            handle = Win32API.GetWindow(handle, Win32API.GW_HWNDNEXT);
         }
         return fromInfo;
      }

      //显示/隐藏所有系统托盘图标
      public static void SetTrayIconAllVisible(bool visible)
      {
         IntPtr vHandle = TrayToolbarWindow32();
         int vCount = Win32API.SendMessage(vHandle, Win32API.TB_BUTTONCOUNT, 0, 0);
         IntPtr vProcessId = IntPtr.Zero;
         Win32API.GetWindowThreadProcessId(vHandle, ref vProcessId);
         IntPtr vProcess = Win32API.OpenProcess(Win32API.PROCESS_VM_OPERATION | Win32API.PROCESS_VM_READ |
         Win32API.PROCESS_VM_WRITE, IntPtr.Zero, vProcessId);
         IntPtr vPointer = Win32API.VirtualAllocEx(vProcess, (int)IntPtr.Zero, 0x1000,
         Win32API.MEM_RESERVE | Win32API.MEM_COMMIT, Win32API.PAGE_READWRITE);
         char[] vBuffer = new char[256];
         IntPtr pp = Marshal.UnsafeAddrOfPinnedArrayElement(vBuffer, 0);
         uint vNumberOfBytesRead = 0;
         try
         {
            for (int i = 0; i < vCount; i++)
            {
               Win32API.SendMessage(vHandle, Win32API.TB_GETBUTTONTEXT, i, vPointer.ToInt32());

               Win32API.ReadProcessMemoryEx(vProcess, vPointer,
               Marshal.UnsafeAddrOfPinnedArrayElement(vBuffer, 0),
               vBuffer.Length * sizeof(char), ref vNumberOfBytesRead);

               if (visible)
               Win32API.SendMessage(vHandle, Win32API.TB_HIDEBUTTON, i, 0);
               else
               Win32API.SendMessage(vHandle, Win32API.TB_HIDEBUTTON, i, 1);

            }
         }
         finally
         {
            Win32API.VirtualFreeEx(vProcess, vPointer, 0, Win32API.MEM_RELEASE);
            Win32API.CloseHandle(vProcess);
         }
      }

      //显示/隐藏单个系统托盘图标,由参数caption指定图标
      public static void SetTrayIconVisible(string caption, bool isShow)
      {
         IntPtr vHandle = TrayToolbarWindow32();
         int vCount = Win32API.SendMessage(vHandle, Win32API.TB_BUTTONCOUNT, 0, 0);
         IntPtr vProcessId = IntPtr.Zero;
         Win32API.GetWindowThreadProcessId(vHandle, ref vProcessId);
         IntPtr vProcess = Win32API.OpenProcess(Win32API.PROCESS_VM_OPERATION | Win32API.PROCESS_VM_READ |
         Win32API.PROCESS_VM_WRITE, IntPtr.Zero, vProcessId);
         IntPtr vPointer = Win32API.VirtualAllocEx(vProcess, (int)IntPtr.Zero, 0x1000,
         Win32API.MEM_RESERVE | Win32API.MEM_COMMIT, Win32API.PAGE_READWRITE);
         char[] vBuffer = new char[256];
         IntPtr pp = Marshal.UnsafeAddrOfPinnedArrayElement(vBuffer, 0);
         uint vNumberOfBytesRead = 0;
         try
         {
            for (int i = 0; i < vCount; i++)
            {
               Win32API.SendMessage(vHandle, Win32API.TB_GETBUTTONTEXT, i, vPointer.ToInt32());

               Win32API.ReadProcessMemoryEx(vProcess, vPointer,
               Marshal.UnsafeAddrOfPinnedArrayElement(vBuffer, 0),
               vBuffer.Length * sizeof(char), ref vNumberOfBytesRead);

               int l = 0;
               for (int j = 0; j < vBuffer.Length; j++)
               {
                  if (vBuffer[j] == (char)0)
                  {
                     l = j;
                     break;
                  }
               }
               string s = new string(vBuffer, 0, l);

               if (s.IndexOf(caption) >= 0)
               {
                  if (isShow)
                  Win32API.SendMessage(vHandle, Win32API.TB_HIDEBUTTON, i, 0);
                  else
                  Win32API.SendMessage(vHandle, Win32API.TB_HIDEBUTTON, i, 1);
               }
               Console.WriteLine(s);
            }
         }
         finally
         {
            Win32API.VirtualFreeEx(vProcess, vPointer, 0, Win32API.MEM_RELEASE);
            Win32API.CloseHandle(vProcess);
         }
      }

      //显示/隐藏所有QQ窗体及QQ托盘图标
      public static void SetQQWindowVisible(IntPtr owner, bool visible)
      {
         //显示/隐藏QQ窗体
         IList<WindowInfo> list = WindowHide.GetQQWindowList((int)owner);
         foreach (WindowInfo wi in list)
         Win32API.ShowWindow(wi.Handle, visible ? Win32API.SW_SHOW : Win32API.SW_HIDE);

         //显示/隐藏QQ托盘图标
         WindowHide.SetTrayIconVisible("QQ", visible);
      }

      //显示/隐藏所有MSN窗体及MSN托盘图标
      public static void SetMSNWindowVisible(IntPtr owner, bool visible)
      {
         //显示/隐藏MSN窗体
         IList<WindowInfo> list = WindowHide.GetMSNWindowList((int)owner);
         foreach (WindowInfo wi in list)
         Win32API.ShowWindow(wi.Handle, visible ? Win32API.SW_SHOW : Win32API.SW_HIDE);

         //显示/隐藏MSN托盘图标
         WindowHide.SetTrayIconVisible("Windows Live Messenger", visible);
      }
   }

}

by www.csframework.com Jonny Sun，如转载请注明出处。

该文章在 2024/3/19 18:09:11 编辑过

点晴ERP是一款针对中小制造业的专业生产管理软件系统,系统成熟度和易用性得到了国内大量中小企业的青睐。

点晴PMS码头管理系统主要针对港口码头集装箱与散货日常运作、调度、堆场、车队、财务费用、相关报表等业务管理，结合码头的业务特点，围绕调度、堆场作业而开发的。集技术的先进性、管理的有效性于一体，是物流码头及其他港口类企业的高效ERP管理信息系统。

点晴WMS仓储管理系统提供了货物产品管理,销售管理,采购管理,仓储管理,仓库管理,保质期管理,货位管理,库位管理,生产管理,WMS管理系统,标签打印,条形码,二维码管理,批号管理软件。

点晴免费OA是一款软件和通用服务都免费，不限功能、不限时间、不限用户的免费OA协同办公管理系统。
