C# 封装miniblink 使用HTML/CSS/JS来构建.Net 应用程序界面和简易浏览器

admin

2024年1月22日 14:49 本文热度 808

MiniBlink的作者是龙泉寺扫地僧

miniblink是什么？ (抄了一下龙泉寺扫地僧写的简洁)

Miniblink是一个全新的、追求极致小巧的浏览器内核项目，
其基于chromium最新版内核，去除了chromium所有多余的部件，只保留最基本的排版引擎blink。
Miniblink保持了10M左右的极简大小，是所有同类产品最小的体积，同时支持windows xp、npapi。

为什么要做miniblink？

市面上作为嵌入的组件的可用的浏览器内核，不外乎这几个：webkit、cef、nwjs、electron。

cef：优点是由于集成的chromium内核，所以对H5支持的很全，同时因为使用的人也多，各种教程、示例，资源很多。但缺点很明显，太大了。最新的cef已经夸张到了100多M，还要带一堆的文件。同时新的cef已经不支持xp了（chromium对应版本是M49）。而且由于是多进程架构，对资源的消耗也很夸张。如果只是想做个小软件，一坨文件需要带上、超大的安装包，显然不能忍受。

nwjs，或者最近大火的electron：和cef内核类似，都是chromium内核。缺点和cef一模一样。优点是由于可以使用nodejs的资源，同时又自带了各种api的绑定，所以可以用的周边资源非常丰富；而基于js的开发方案，使得前端很容易上手。所以最近N多项目都是基于nwjs或electron来实现。例如vscode，atom等等。

原版webkit：现在官网还在更新windows port，但显然漫不在心，而且最新的webkit也很大了，超过20几M。最关键的是，周边资源很少，几乎没人再基于webkit来做开发。同时由于windows版的saferi已经停止开发了，所以用webkit就用不了他的dev tools了。这是个大遗憾。

WKE：这是个很老的webkit内核的裁剪版了。小是小，但bug太多了。

那么关键点来了，使用miniblink有啥好处呢？？

首先，miniblink对大小要求非常严格。原版chromium、blink里对排版渲染没啥大用的如音视频全都被砍了，只专注于网页的排版和渲染。甚至为了裁剪大小，我不惜使用vc6的crt来跑mininblink。这个也算前无古人后无来者了。

其次，miniblink紧跟最新chromium，这意味着chromium相关的资源都可以利用。在未来的规划里，我是打算把electron的接口也加上的，这样可以无缝替换electron。使用miniblink的话，开发调试时用原版electron，发布的时候再替换掉那些dll，直接可以无缝切换，非常方便。

miniblink如何裁剪到这么小？

这个比较复杂了。主要就是把blink从chromium抽离了出来，同时补上了cc层（硬件渲染层）。现在的blink，已经不是当年的那个webkit了，渲染部分全走cc层，复杂无比。我这大半年都在重写他那个蛋疼又复杂的cc层。

和webkit比，miniblink架构有什么优势

现在的webkit版本，已经比miniblink落后太多了。blink一直在加入各种极富创造力和想象力的功能、组件。例如，blink早就加入多线程解析html token、blink gc回收器、多线程录制回放渲染机制。这些能让blink的解析渲染速度极大提升。下一次，我会先开源出blink gc组件，这东西很有意思，在c++里硬是搞出了一个垃圾回收机制，能让你像写java一样写c++。

miniblink 开源地址：https://github.com/weolar/miniblink49

我们可以通过miniblink做桌面应用的UI，超小的附加dll，压缩之后大约5M，比起Cefsharp 小太多了。VSCode也是用 Electron 网页开发的

Html开发UI和WPF对比有什么优势？

1、 Html 前端资源丰富，各种框架

2、会Html的人比会WPF的人多太多了，入门简单

3、.Net2.0照样可以用

4、网站和桌面程序界面可以统一，甚至大部分前端代码复用

资源消耗方面，和WPF差不多，毕竟浏览器也是内存消耗大户

不过对比electron 这种纯 Html CSS + js的，我更喜欢用C# 代替JS 做业务逻辑，我感觉JS写大项目代码比较乱，维护比C#麻烦。所以 JS做前端辅助比较合适，业务逻辑用C#实现

接下来，我写个简单的MiniBlink封装案例！更多功能你们可以自行封装或者看看 DSkin

采用 PInvoke 和Winform封装方式，MiniBlink对外提供的接口主要在 wke.h ，miniblink 的dll可以通过GitHub源码编译出来。具体封装规则，你们可以百度查查看

  1 using System;

  2 using System.Collections.Generic;

  3 using System.Linq;

  4 using System.Text;

  5 using System.Runtime.InteropServices;

  6 //by:DSkin

  8 namespace MiniBlink

  9 {

 10     public static class MiniblinkPInvoke

 11     {

 12         const string miniblinkdll = "node.dll";

 15         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 16         public static extern void wkeSetHandle(IntPtr webView, IntPtr wnd);

 18         [DllImport(miniblinkdll, CharSet = CharSet.Unicode)]

 19         public static extern IntPtr wkeGetStringW(IntPtr @string);

 21         [DllImport(miniblinkdll, CharSet = CharSet.Unicode)]

 22         public static extern IntPtr wkeToStringW(IntPtr @string);

 24         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 25         public static extern IntPtr wkeGetString(IntPtr @string);

 27         [DllImport(miniblinkdll)]

 28         public static extern void wkeSetDebugConfig(IntPtr webView, string debugString, IntPtr param);

 30         [DllImport(miniblinkdll)]

 31         public static extern Int64 wkeRunJSW(IntPtr webView, [In] [MarshalAs(UnmanagedType.LPWStr)] string script);

 33         [return: MarshalAs(UnmanagedType.I1)]

 34         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 35         public static extern bool wkeFireMouseEvent(IntPtr webView, uint message, int x, int y, uint flags);

 37         [return: MarshalAs(UnmanagedType.I1)]

 38         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 39         public static extern bool wkeFireMouseWheelEvent(IntPtr webView, int x, int y, int delta, uint flags);

 41         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 42         [return: MarshalAs(UnmanagedType.I1)]

 43         public static extern bool wkeFireKeyUpEvent(IntPtr webView, uint virtualKeyCode, uint flags, [MarshalAs(UnmanagedType.I1)] bool systemKey);

 45         [return: MarshalAs(UnmanagedType.I1)]

 46         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 47         public static extern bool wkeFireKeyDownEvent(IntPtr webView, uint virtualKeyCode, uint flags, [MarshalAs(UnmanagedType.I1)] bool systemKey);

 49         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 50         [return: MarshalAs(UnmanagedType.I1)]

 51         public static extern bool wkeFireKeyPressEvent(IntPtr webView, uint charCode, uint flags, [MarshalAs(UnmanagedType.I1)] bool systemKey);

 53         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 54         public static extern void wkeSetFocus(IntPtr webView);

 56         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 57         public static extern void wkeKillFocus(IntPtr webView);

 59         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 60         public static extern void wkeResize(IntPtr webView, int w, int h);

 62         [DllImport(miniblinkdll)]

 63         public static extern IntPtr wkeCreateWebView();

 65         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 66         public static extern void wkeDestroyWebView(IntPtr webView);

 68         [DllImport(miniblinkdll)]

 69         public static extern void wkeInitialize();

 71         [DllImport(miniblinkdll)]

 72         public static extern void wkeLoadFile(IntPtr webView, [In, MarshalAs(UnmanagedType.LPWStr)] string filename);

 74         [DllImport(miniblinkdll)]

 75         public static extern void wkeLoadHTML(System.IntPtr webView, [In()] [MarshalAs(UnmanagedType.LPStr)] string html);

 77         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 78         public static extern void wkeOnURLChanged2(IntPtr webView, UrlChangedCallback2 callback, IntPtr callbackParam);

 80         [DllImport(miniblinkdll, CharSet = CharSet.Auto, CallingConvention = CallingConvention.Cdecl)]

 81         public static extern void wkeLoadURLW(IntPtr webView, [In, MarshalAs(UnmanagedType.LPWStr)] string url);

 83         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 84         public static extern void wkeOnPaintUpdated(IntPtr webView, wkePaintUpdatedCallback callback, IntPtr callbackParam);

 86         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 87         public static extern void wkePaint(IntPtr webView, IntPtr bits, int pitch);

 88         [DllImport(miniblinkdll, CallingConvention = CallingConvention.Cdecl)]

 89         public static extern WkeCursorInfo wkeGetCursorInfoType(IntPtr webView);

 91         public static string Utf8IntptrToString(this IntPtr ptr)

 92         {

 93             var data = new List<byte>();

 94             var off = 0;

 95             while (true)

 96             {

 97                 var ch = Marshal.ReadByte(ptr, off++);

 98                 if (ch == 0)

 99                 {

100                     break;

101                 }

102                 data.Add(ch);

103             }

104             return Encoding.UTF8.GetString(data.ToArray());

105         }

106 　　　　　//调用这个之后要手动调用  Marshal.FreeHGlobal(ptr);

107         public static IntPtr Utf8StringToIntptr(this string str)

108         {

109             byte[] utf8bytes = Encoding.UTF8.GetBytes(str);

110             IntPtr ptr = Marshal.AllocHGlobal(utf8bytes.Length + 1);

111             Marshal.Copy(utf8bytes, 0, ptr, utf8bytes.Length);

112             Marshal.WriteByte(ptr, utf8bytes.Length, 0);

113             return ptr;

114         }

117         public enum WkeCursorInfo

118         {

119             WkeCursorInfoPointer = 0,

120             WkeCursorInfoCross = 1,

121             WkeCursorInfoHand = 2,

122             WkeCursorInfoIBeam = 3,

123             WkeCursorInfoWait = 4,

124             WkeCursorInfoHelp = 5,

125             WkeCursorInfoEastResize = 6,

126             WkeCursorInfoNorthResize = 7,

127             WkeCursorInfoNorthEastResize = 8,

128             WkeCursorInfoNorthWestResize = 9,

129             WkeCursorInfoSouthResize = 10,

130             WkeCursorInfoSouthEastResize = 11,

131             WkeCursorInfoSouthWestResize = 12,

132             WkeCursorInfoWestResize = 13,

133             WkeCursorInfoNorthSouthResize = 14,

134             WkeCursorInfoEastWestResize = 15,

135             WkeCursorInfoNorthEastSouthWestResize = 16,

136             WkeCursorInfoNorthWestSouthEastResize = 17,

137             WkeCursorInfoColumnResize = 18,

138             WkeCursorInfoRowResize = 19,

139         }

140         public enum wkeMouseMessage : uint

141         {

142             WKE_MSG_MOUSEMOVE = 0x0200,

143             WKE_MSG_LBUTTONDOWN = 0x0201,

144             WKE_MSG_LBUTTONUP = 0x0202,

145             WKE_MSG_LBUTTONDBLCLK = 0x0203,

146             WKE_MSG_RBUTTONDOWN = 0x0204,

147             WKE_MSG_RBUTTONUP = 0x0205,

148             WKE_MSG_RBUTTONDBLCLK = 0x0206,

149             WKE_MSG_MBUTTONDOWN = 0x0207,

150             WKE_MSG_MBUTTONUP = 0x0208,

151             WKE_MSG_MBUTTONDBLCLK = 0x0209,

152             WKE_MSG_MOUSEWHEEL = 0x020A,

153         }

154         public enum wkeMouseFlags

155         {

156             WKE_LBUTTON = 0x01,

157             WKE_RBUTTON = 0x02,

158             WKE_SHIFT = 0x04,

159             WKE_CONTROL = 0x08,

160             WKE_MBUTTON = 0x10,

161         }

164         [UnmanagedFunctionPointer(CallingConvention.Cdecl)]

165         public delegate void wkePaintUpdatedCallback(IntPtr webView, IntPtr param, IntPtr hdc, int x, int y, int cx, int cy);

167         [UnmanagedFunctionPointer(CallingConvention.Cdecl)]

168         public delegate void UrlChangedCallback2(IntPtr webView, IntPtr param, IntPtr frameId, IntPtr url);

169     }

170 }

  1 using System;
  2 using System.Collections;
  3 using System.Collections.Generic;
  4 using System.ComponentModel;
  5 using System.Drawing;
  6 using System.Drawing.Imaging;
  7 using System.IO;
  8 using System.Linq;
  9 using System.Reflection;
 10 using System.Runtime.InteropServices;
 11 using System.Text;
 12 using System.Text.RegularExpressions;
 13 using System.Windows.Forms;
 14 //by:DSkin
 15
 16 namespace MiniBlink
 17 {
 18     public class TestControl : Control
 19     {
 20         IntPtr handle = IntPtr.Zero;
 21         string url = string.Empty;
 22
 23         IntPtr bits = IntPtr.Zero;
 24         Size oldSize;
 25         MiniblinkPInvoke.UrlChangedCallback2 UrlChangedCallback2;
 26         MiniblinkPInvoke.wkePaintUpdatedCallback wkePaintUpdatedCallback;
 27
 28         public TestControl()
 29         {
 30             SetStyle(ControlStyles.OptimizedDoubleBuffer |
 31             ControlStyles.DoubleBuffer |
 32             ControlStyles.AllPaintingInWmPaint |
 33             ControlStyles.ResizeRedraw |
 34             ControlStyles.UserPaint, true);
 35         }
 36
 37         public string Url
 38         {
 39             get
 40             {
 41                 return url;
 42             }
 43
 44             set
 45             {
 46                 url = value;
 47                 if (handle != IntPtr.Zero)
 48                 {
 49                     MiniblinkPInvoke.wkeLoadURLW(handle, value);
 50                 }
 51             }
 52         }
 53
 54         protected override void OnCreateControl()
 55         {
 56             base.OnCreateControl();
 57             if (!DesignMode)
 58             {
 59                 MiniblinkPInvoke.wkeInitialize();
 60                 handle = MiniblinkPInvoke.wkeCreateWebView();//创建 WebView
 61                 MiniblinkPInvoke.wkeSetHandle(handle, this.Handle);
 62                 MiniblinkPInvoke.wkeResize(handle, Width, Height);
 63
 64                 UrlChangedCallback2 = (webView, param, frameId, url) =>
 65                 {
 66                     this.url = MiniblinkPInvoke.wkeGetString(url).Utf8IntptrToString();
 67                     OnUrlChanged(EventArgs.Empty);
 68                 };
 69                 MiniblinkPInvoke.wkeOnURLChanged2(handle, UrlChangedCallback2, IntPtr.Zero);
 70
 71                 wkePaintUpdatedCallback = (IntPtr webView, IntPtr param, IntPtr hdc, int x, int y, int cx, int cy) =>
 72                 {
 73                     Invalidate();
 74                 };
 75                 MiniblinkPInvoke.wkeOnPaintUpdated(handle, wkePaintUpdatedCallback, IntPtr.Zero);
 76
 77                 Url = url;
 78             }
 79         }
 80
 81         protected override void OnPaint(PaintEventArgs e)
 82         {
 83             if (handle != IntPtr.Zero)
 84             {
 85                 if (bits == IntPtr.Zero || oldSize != Size)
 86                 {
 87                     if (bits != IntPtr.Zero)
 88                     {
 89                         Marshal.FreeHGlobal(bits);
 90                     }
 91                     oldSize = Size;
 92                     bits = Marshal.AllocHGlobal(Width * Height * 4);
 93                 }
 94
 95                 MiniblinkPInvoke.wkePaint(handle, bits, 0);
 96                 using (Bitmap bmp = new Bitmap(Width, Height, Width * 4, PixelFormat.Format32bppPArgb, bits))
 97                 {
 98                     e.Graphics.DrawImage(bmp, 0, 0);
 99                 }
100             }
101             base.OnPaint(e);

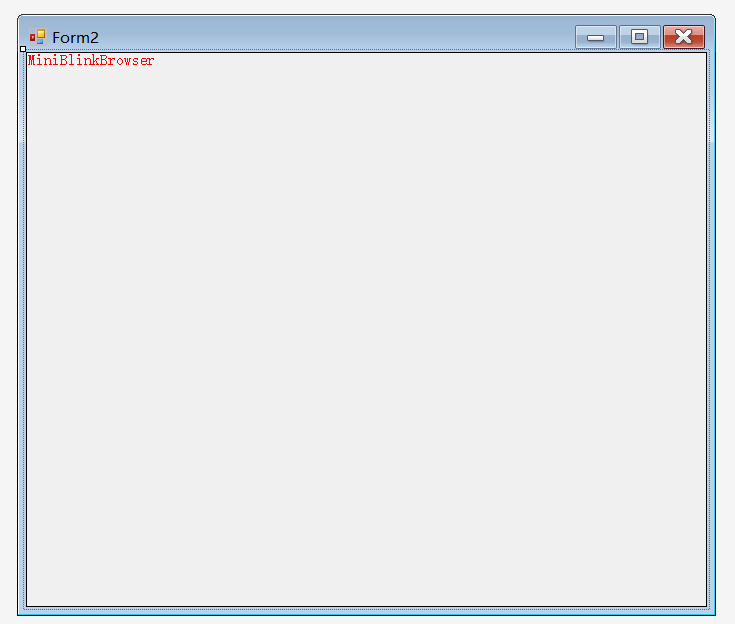

102             if (DesignMode)
103             {
104                 e.Graphics.DrawString("MiniBlinkBrowser", this.Font, Brushes.Red, new Point());
105                 e.Graphics.DrawRectangle(Pens.Black, new Rectangle(0, 0, Width - 1, Height - 1));
106             }
107         }
108
109         protected override void OnSizeChanged(EventArgs e)
110         {
111             base.OnSizeChanged(e);
112             if (handle != IntPtr.Zero && Width > 1 && Height > 1)
113             {
114                 MiniblinkPInvoke.wkeResize(handle, Width, Height);
115             }
116         }
117
118         protected override void OnMouseWheel(MouseEventArgs e)
119         {
120             base.OnMouseWheel(e);
121             if (handle != IntPtr.Zero)
122             {
123                 uint flags = GetMouseFlags(e);
124                 MiniblinkPInvoke.wkeFireMouseWheelEvent(handle, e.X, e.Y, e.Delta, flags);
125             }
126         }
127         protected override void OnMouseDown(MouseEventArgs e)
128         {
129             base.OnMouseDown(e);
130             uint msg = 0;
131             if (e.Button == MouseButtons.Left)
132             {
133                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_LBUTTONDOWN;
134             }
135             else if (e.Button == MouseButtons.Middle)
136             {
137                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_MBUTTONDOWN;
138             }
139             else if (e.Button == MouseButtons.Right)
140             {
141                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_RBUTTONDOWN;
142             }
143             uint flags = GetMouseFlags(e);
144             if (handle != IntPtr.Zero)
145             {
146                 MiniblinkPInvoke.wkeFireMouseEvent(handle, msg, e.X, e.Y, flags);
147             }
148         }
149         protected override void OnMouseUp(MouseEventArgs e)
150         {
151             base.OnMouseUp(e);
152             uint msg = 0;
153             if (e.Button == MouseButtons.Left)
154             {
155                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_LBUTTONUP;
156             }
157             else if (e.Button == MouseButtons.Middle)
158             {
159                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_MBUTTONUP;
160             }
161             else if (e.Button == MouseButtons.Right)
162             {
163                 msg = (uint)MiniblinkPInvoke.wkeMouseMessage.WKE_MSG_RBUTTONUP;
164             }
165             uint flags = GetMouseFlags(e);
166             if (handle != IntPtr.Zero)
167             {
168                 MiniblinkPInvoke.wkeFireMouseEvent(handle, msg, e.X, e.Y, flags);
169             }
170         }
171         protected override void OnMouseMove(MouseEventArgs e)
172         {
173             base.OnMouseMove(e);
174             if (this.handle != IntPtr.Zero)
175             {
176                 uint flags = GetMouseFlags(e);
177                 MiniblinkPInvoke.wkeFireMouseEvent(this.handle, 0x200, e.X, e.Y, flags);
178
179                 switch (MiniblinkPInvoke.wkeGetCursorInfoType(handle))
180                 {
181                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoPointer:
182                         Cursor = Cursors.Default;
183                         break;
184                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoCross:
185                         Cursor = Cursors.Cross;
186                         break;
187                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoHand:
188                         Cursor = Cursors.Hand;
189                         break;
190                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoIBeam:
191                         Cursor = Cursors.IBeam;
192                         break;
193                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoWait:
194                         Cursor = Cursors.WaitCursor;
195                         break;
196                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoHelp:
197                         Cursor = Cursors.Help;
198                         break;
199                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoEastResize:
200                         Cursor = Cursors.SizeWE;
201                         break;
202                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthResize:
203                         Cursor = Cursors.SizeNS;
204                         break;
205                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthEastResize:
206                         Cursor = Cursors.SizeNESW;
207                         break;
208                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthWestResize:
209                         Cursor = Cursors.SizeNWSE;
210                         break;
211                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoSouthResize:
212                         Cursor = Cursors.SizeNS;
213                         break;
214                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoSouthEastResize:
215                         Cursor = Cursors.SizeNWSE;
216                         break;
217                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoSouthWestResize:
218                         Cursor = Cursors.SizeNESW;
219                         break;
220                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoWestResize:
221                         Cursor = Cursors.SizeWE;
222                         break;
223                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthSouthResize:
224                         Cursor = Cursors.SizeNS;
225                         break;
226                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoEastWestResize:
227                         Cursor = Cursors.SizeWE;
228                         break;
229                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthEastSouthWestResize:
230                         Cursor = Cursors.SizeAll;
231                         break;
232                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoNorthWestSouthEastResize:
233                         Cursor = Cursors.SizeAll;
234                         break;
235                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoColumnResize:
236                         Cursor = Cursors.Default;
237                         break;
238                     case MiniblinkPInvoke.WkeCursorInfo.WkeCursorInfoRowResize:
239                         Cursor = Cursors.Default;
240                         break;
241                     default:
242                         Cursor = Cursors.Default;
243                         break;
244                 }
245             }
246         }
247         protected override void OnKeyDown(KeyEventArgs e)
248         {
249             base.OnKeyDown(e);
250             if (handle != IntPtr.Zero)
251             {
252                 MiniblinkPInvoke.wkeFireKeyDownEvent(handle, (uint)e.KeyValue, 0, false);
253             }
254         }
255         protected override void OnKeyPress(KeyPressEventArgs e)
256         {
257             base.OnKeyPress(e);
258             if (handle != IntPtr.Zero)
259             {
260                 e.Handled = true;
261                 MiniblinkPInvoke.wkeFireKeyPressEvent(handle, (uint)e.KeyChar, 0, false);
262             }
263         }
264         protected override void OnKeyUp(KeyEventArgs e)
265         {
266             base.OnKeyUp(e);
267             if (handle != IntPtr.Zero)
268             {
269                 MiniblinkPInvoke.wkeFireKeyUpEvent(handle, (uint)e.KeyValue, 0, false);
270             }
271         }
272
273         protected override void OnGotFocus(EventArgs e)
274         {
275             base.OnGotFocus(e);
276             if (handle != IntPtr.Zero)
277             {
278                 MiniblinkPInvoke.wkeSetFocus(handle);
279             }
280         }
281
282         protected override void OnLostFocus(EventArgs e)
283         {
284             base.OnLostFocus(e);
285             if (handle != IntPtr.Zero)
286             {
287                 MiniblinkPInvoke.wkeKillFocus(handle);
288             }
289         }
290
291         protected override void OnPreviewKeyDown(PreviewKeyDownEventArgs e)
292         {
293             base.OnPreviewKeyDown(e);
294             switch (e.KeyCode)
295             {
296                 case Keys.Down:
297                 case Keys.Up:
298                 case Keys.Left:
299                 case Keys.Right:
300                 case Keys.Tab:
301                     e.IsInputKey = true;
302                     break;
303             }
304         }
305         private static uint GetMouseFlags(MouseEventArgs e)
306         {
307             uint flags = 0;
308             if (e.Button == MouseButtons.Left)
309             {
310                 flags = flags | (uint)MiniblinkPInvoke.wkeMouseFlags.WKE_LBUTTON;
311             }
312             if (e.Button == MouseButtons.Middle)
313             {
314                 flags = flags | (uint)MiniblinkPInvoke.wkeMouseFlags.WKE_MBUTTON;
315             }
316             if (e.Button == MouseButtons.Right)
317             {
318                 flags = flags | (uint)MiniblinkPInvoke.wkeMouseFlags.WKE_RBUTTON;
319             }
320             if (Control.ModifierKeys == Keys.Control)
321             {
322                 flags = flags | (uint)MiniblinkPInvoke.wkeMouseFlags.WKE_CONTROL;
323             }
324             if (Control.ModifierKeys == Keys.Shift)
325             {
326                 flags = flags | (uint)MiniblinkPInvoke.wkeMouseFlags.WKE_SHIFT;
327             }
328             return flags;
329         }
330
331
332         protected override void Dispose(bool disposing)
333         {
334             base.Dispose(disposing);
335             if (handle != IntPtr.Zero)
336             {//资源释放
337                 MiniblinkPInvoke.wkeDestroyWebView(handle);
338                 handle = IntPtr.Zero;
339             }
340             if (bits != IntPtr.Zero)
341             {
342                 Marshal.FreeHGlobal(bits);
343                 bits = IntPtr.Zero;
344             }
345         }
346
347         public event EventHandler UrlChanged;
348
349         protected virtual void OnUrlChanged(EventArgs e)
350         {
351             if (UrlChanged != null)
352             {
353                 UrlChanged(this, e);
354             }
355         }
356
357     }
358 }
