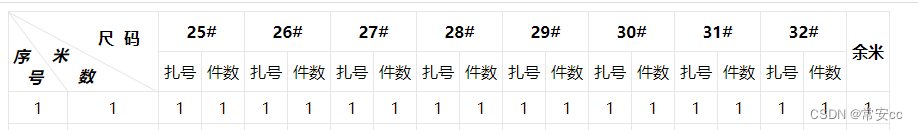

HTML纯CSS实现table表格单元格斜线表头
当前位置:点晴教程→知识管理交流
→『 技术文档交流 』
<!DOCTYPE html> <html lang="en"> <head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>斜线表头</title> <style> /* 基本表格元素 */ table { border-collapse: collapse; }
th, td { border: 1px solid #e6e6e6; padding: 5px; text-align: center; /* font-weight: 400; */ }
/* tr td { width: 48px; }
tr td:first-child { width: 48px; } */ .index_td { width: 48px; }
/* th单元格 */ .slash-wrap { position: relative; box-sizing: border-box; width: 150px; height: 80px; }
/* 斜线 */ .slash1 { position: absolute; display: block; top: 0; left: 0; /* 斜边边长 */ /* Math.sqrt(Math.pow(width, 2) + Math.pow(height, 2)) */ /* Math.sqrt(Math.pow(150, 2) + Math.pow(80, 2)) = 170 */ width: 100px; height: 1px; background-color: #e6e6e6; /* 旋转角度计算公式 */ /* Math.atan(height / width) * 180 / Math.PI */ /* Math.atan(80 / 150) * 180 / Math.PI = 28.072486935852954 */ transform: rotate(53.13010235415598deg); transform-origin: top left; }
/* 斜线 */ .slash2 { position: absolute; display: block; top: 0; left: 0; /* 斜边边长 */ /* Math.sqrt(Math.pow(width, 2) + Math.pow(height, 2)) */ /* Math.sqrt(Math.pow(150, 2) + Math.pow(80, 2)) = 170 */ width: 170px; height: 1px; background-color: #e6e6e6; /* 旋转角度计算公式 */ /* Math.atan(height / width) * 180 / Math.PI */ /* Math.atan(80 / 150) * 180 / Math.PI = 28.072486935852954 */ transform: rotate(28.072486935852954deg); transform-origin: top left; }
/* 左下角文字 */ .left { position: absolute; /* 左下角 left:0; bottom: 0; */ left: 3px; bottom: 4px; }
/* 右上角文字 */ .mid { position: absolute; /* 右上角 right:0; top: 0; */ left: 42px; bottom: 5px; }
/* 右上角文字 */ .right { position: absolute; /* 右上角 right:0; top: 0; */ right: 8px; top: 15px; letter-spacing: 10px; } </style> </head> <body> <div> <table> <tr> <th class="slash-wrap" rowspan="2" colspan="2"> <span class="left"><i style="display: block;width: 18px;">序</i><i style="width: 18px;display: block;padding-left: 14px;">号</i></span> <span class="slash1"></span> <span class="mid"><i style="display: block;width: 18px;">米</i><i style="width: 18px;display: block;padding-left: 26px;">数</i></span> <span class="slash2"></span> <span class="right">尺码</span> </th> <th colspan="2">25#</th> <th colspan="2">26#</th> <th colspan="2">27#</th> <th colspan="2">28#</th> <th colspan="2">29#</th> <th colspan="2">30#</th> <th colspan="2">31#</th> <th colspan="2">32#</th> <th rowspan="2">余米</th> </tr> <tr> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> <td>扎号</td> <td>件数</td> </tr> <tr> <td class="index_td">1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> <td>1</td> </tr> </table> </div> </body> </html> 该文章在 2023/6/8 10:13:57 编辑过 |
