C#实现端口NAT转发可以用来实现远程桌面连接内网主机
当前位置:点晴教程→知识管理交流
→『 技术文档交流 』

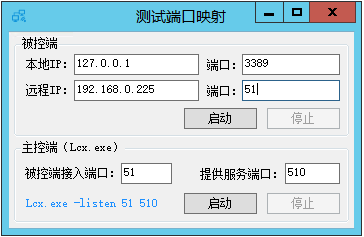

gYP.Start() 方法调用后填写一台公网主机IP(192.168.0.225)和端口(51),然后公网主机用lcx转发51到510端口,远程桌面在公网主机连自己(127.0.0.1:510)的510端口,就可以了。
主窗口:FrmPortTransfer.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.IO;
using System.Linq;
using System.Net;
using System.Net.Sockets;
using System.Text;
using System.Threading;
using System.Threading.Tasks;
using System.Windows.Forms;
namespace testPortTransfer
{
public partial class FrmPortTransfer : Form
{
public string exePath = System.Windows.Forms.Application.StartupPath; //本程序所在路径
public int closeLcx = 0;
public FrmPortTransfer()
{
InitializeComponent();
}
protected void tYoZ(object sender, EventArgs e)
{
}
private void btnStart_Click(object sender, EventArgs e)
{
btnStart.Enabled = false;
btnStart.Text = "执行中...";
btnStop.Enabled = true;
if (llH.Text.Length < 7 || ZHS.Text == "" || eEpm.Text.Length < 7 || iXdh.Text == "") return;
Public.RemoteIP = llH.Text; //远程IP
Public.RemotePort = ZHS.Text; //远程端口
Public.LocalIP = eEpm.Text; //本地IP
Public.LocalPort = iXdh.Text; //本地端口
Public.StopServiceFlag = 1; //执行状态,0-停止、1-执行中
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
private void btnStop_Click(object sender, EventArgs e)
{
btnStart.Enabled = true;
btnStart.Text = "启动";
btnStop.Enabled = false;
Public.StopServiceFlag = 0;
PortForward gYP = new PortForward();
gYP.lyTOK();
}
private void btnServerStart_Click(object sender, EventArgs e)
{
btnServerStart.Enabled = false;
btnServerStart.Text = "执行中...";
btnServerStop.Enabled = true;
closeLcx = 1;
btnServerStop_Click(sender, e);
Thread.Sleep(1000);
string FilePath = (exePath + @"\lcx.exe").Replace(@"\\", @"\");
if (File.Exists(FilePath))
{
Process.Start(FilePath, " -listen " + txtServerInPort.Text + " " + txtServerOutPort.Text);
}
else
{
MessageBox.Show("启动应用程序失败:“" + FilePath + "”不存在!", "系统提醒", MessageBoxButtons.OK, MessageBoxIcon.Error);
}
}
private void btnServerStop_Click(object sender, EventArgs e)
{
if (closeLcx == 0)
{
DialogResult result = MessageBox.Show("您确定要关闭LCX服务吗?", "确认关闭", MessageBoxButtons.OKCancel, MessageBoxIcon.Question);
if (result != DialogResult.OK){ return; }
btnServerStart.Enabled = true;
btnServerStart.Text = "启动";
btnServerStop.Enabled = false;
}
closeLcx = 0;
string FilePath = (exePath + @"\lcx.exe").Replace(@"\\", @"\");
if (File.Exists(FilePath))
{
//停止后台服务程序
try
{
string CSFilePath = FilePath.ToLower();
if (File.Exists(CSFilePath))
{
Process[] myProcesses = Process.GetProcessesByName("lcx");
foreach (Process myProcess in myProcesses)
{
if (CSFilePath == myProcess.MainModule.FileName.ToLower())
{
Process p = Process.GetProcessById(myProcess.Id);
p.Kill();
break;
}
}
}
}
catch (Exception) { }
}
}
}
public class PortForward
{
public string Localaddress;
public int LocalPort;
public string RemoteAddress;
public int RemotePort;
string type;
Socket ltcpClient;
Socket rtcpClient;
Socket server;
byte[] DPrPL = new byte[2048];
byte[] wvZv = new byte[2048];
public struct session
{
public Socket rdel;
public Socket ldel;
public int llen;
public int rlen;
}
public static IPEndPoint mtJ(string host, int port)
{
IPEndPoint iep = null;
//IPHostEntry aGN = Dns.Resolve(host);
//IPAddress rmt = aGN.AddressList[0];
IPAddress rmt = IPAddress.Parse(host);
iep = new IPEndPoint(rmt, port);
return iep;
}
public void Start(string Rip, int Rport, string lip, int lport)
{
try
{
LocalPort = lport;
RemoteAddress = Rip;
RemotePort = Rport;
Localaddress = lip;
rtcpClient = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
ltcpClient = new Socket(AddressFamily.InterNetwork, SocketType.Stream, ProtocolType.Tcp);
rtcpClient.BeginConnect(mtJ(RemoteAddress, RemotePort), new AsyncCallback(iiGFO), rtcpClient);
}
catch (Exception ex) { }
}
protected void iiGFO(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0) { return; }
try
{
session RKXy = new session();
RKXy.ldel = ltcpClient;
RKXy.rdel = rtcpClient;
ltcpClient.BeginConnect(mtJ(Localaddress, LocalPort), new AsyncCallback(VTp), RKXy);
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
protected void VTp(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0) { return; }
try
{
session RKXy = (session)ar.AsyncState;
ltcpClient.EndConnect(ar);
RKXy.rdel.BeginReceive(DPrPL, 0, DPrPL.Length, SocketFlags.None, new AsyncCallback(LFYM), RKXy);
RKXy.ldel.BeginReceive(wvZv, 0, wvZv.Length, SocketFlags.None, new AsyncCallback(xPS), RKXy);
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
private void LFYM(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0) { return; }
try
{
session RKXy = (session)ar.AsyncState;
int Ret = RKXy.rdel.EndReceive(ar);
if (Ret > 0)
ltcpClient.BeginSend(DPrPL, 0, Ret, SocketFlags.None, new AsyncCallback(JTcp), RKXy);
else lyTOK();
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
private void JTcp(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0) { return; }
try
{
session RKXy = (session)ar.AsyncState;
RKXy.ldel.EndSend(ar);
RKXy.rdel.BeginReceive(DPrPL, 0, DPrPL.Length, SocketFlags.None, new AsyncCallback(this.LFYM), RKXy);
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
private void xPS(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0){ return; }
try
{
session RKXy = (session)ar.AsyncState;
int Ret = RKXy.ldel.EndReceive(ar);
if (Ret > 0)
RKXy.rdel.BeginSend(wvZv, 0, Ret, SocketFlags.None, new AsyncCallback(IZU), RKXy);
else lyTOK();
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
private void IZU(IAsyncResult ar)
{
if (Public.StopServiceFlag == 0) { return; }
try
{
session RKXy = (session)ar.AsyncState;
RKXy.rdel.EndSend(ar);
RKXy.ldel.BeginReceive(wvZv, 0, wvZv.Length, SocketFlags.None, new AsyncCallback(this.xPS), RKXy);
}
catch (Exception ex)
{
PortForward gYP = new PortForward();
gYP.Start(Public.RemoteIP, int.Parse(Public.RemotePort), Public.LocalIP, int.Parse(Public.LocalPort));
}
}
public void lyTOK()
{
try
{
if (ltcpClient != null)
{
ltcpClient.Close();
}
if (rtcpClient != null)
rtcpClient.Close();
}
catch (Exception ex) { }
}
}
} 类:Public.cs
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace testPortTransfer
{
class Public
{
public static string RemoteIP = ""; //远程IP
public static string RemotePort = ""; //远程端口
public static string LocalIP = ""; //本地IP
public static string LocalPort = ""; //本地端口
public static int StopServiceFlag = 0; //执行状态,0-停止、1-执行中
}
} 该文章在 2021/6/10 10:37:35 编辑过 |
